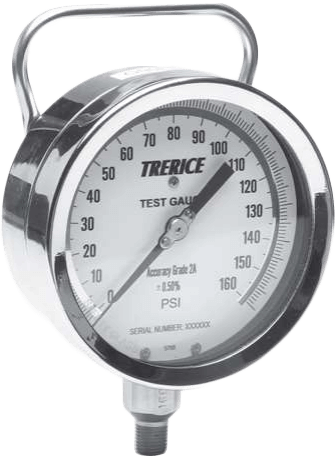

575SS Series Field Test Gauge
Brand: Trerice Gauges & ValvesThe Trerice 575SS offers portable inspecting and testing of pressure systems and vessels prior to start up or to trouble shoot existing applications.
This gauge has a mirrored dial face, adjustable pointer and NIST traceable certification allowing for the best in-field testing.
Features- Mirrored Dial
- Includes Carrying Case
- NIST Traceable Certification
Specifications
Brand
Dial Size
- 4-1/2"
Wetted Parts
- 316L Stainless Steel Tube and Socket
Movement
- Stainless Steel, Delrin Bushings and Sector Gear
Connection
- 1/4" NPT lower Male
Case
- Cast Aluminum, Chrome-Plated Finish NEMA 2
Ring
- Cast Aluminum, Threaded Chrome-Plated Finish
Window
- Laminated Safety Glass
Pointer
- Black Knife Edge, Slotted Micro-Adjustable
Dial Face
- Aluminum, White Background with Mirrored Band, Black Graduations and Markings
Accuracy
- ± 0.5 % Full Scale, ASME B40.100 Grade 2A
Safety
- Rear Mounted Blow-out Disc and Overload/Underload Stops
Carrying Case
- Blue Hard Sided with Foam Insert for Shock Resistance
Certification
- NIST Traceable Certificate of Accuracy Included with Serial Number Printed on Dial
Maximum Temperature
- 250° F (121° C)
Features
- Heavy Duty Wrench, Carry handle on case, Restrictor screw
Approximate Shipping Weight
- 3.2 lb [1.45 kg]
