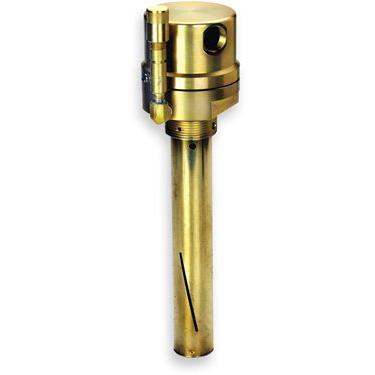

049 Vertical Oil Level Indicator Switch
Brand: Qualitrol CompanyProvides continuous indication of the liquid level within an oil filled transformer’s main tank, conservator tank or load tap changer compartment.
Integrated switches allow limit and alarm functions.
Features- UL and CSA approved switch
- Magnetically coupled for leak free operation
- Permanent internal waterproof seal for leak protection with protective display cover
- Float and indication assemblies are magnetically coupled for easy replacement of indicator if damaged
- Vented enclosure meets IP54 requirements
- Integrated snap switch allows for setting an alarm signaling specified oil level
- Single pole double throw switch is UL and CSA approved
- Kit consists of a manifold with shut-offs, a vacuum pump, a stopcock with tubing and a wrench to access the port on the 049
Specifications
Brand
Ambient Humidity
- 35 to 100 %
Ambient Operating Temperature
- -40° to 55° C (-40° to 131° F)
Connection
- PG-16 Female Thread (DIN 40430), Cover is Capable of 360° Rotation
Dielectric Strength
- 2,000 Vac between Individual Switch Contacts & Ground for 60 seconds
Float Material
- Nitrophyl
Mounting
- R: 1-1/2" Male Thread (DIN 259), Vertical Installation Only
Oil Temperature Range
- 0° to 100° C (32° to 212° F)
Switch Rating
- 5 A at 125/250 Vac
Switch Type
- One SPDT Snap-Action Switch (UL Listed & CSA Approved)
