RC-40 (MARK 2) Roller Bottle System

Brand: Sanisure

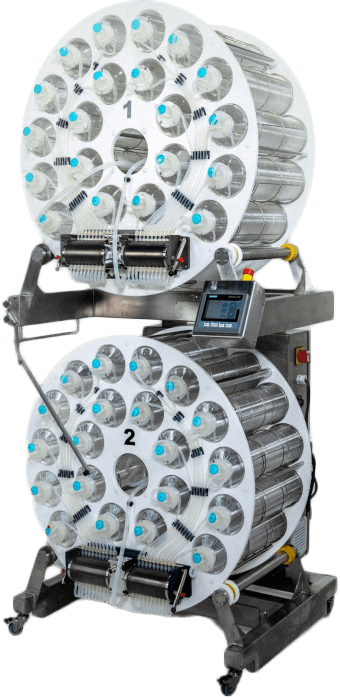

The RC-40 has two 20-bottle position rotors, each fitted with a multichannel peristaltic pump. Pump volume, rotor direction (both clock and counter clock wise) and speed are controlled via a simple programmable CPU.

Unlike robots or traditonal roller bottle handling systems, the RC-40 automates all stages of a rollter bottle process. For example the RC-40 can perform a media exchange of all 40 bottles (in one frame) simultaneously and without opening them.

The gamma-irradiated RC-40 Bottle Packs consist of 20 bottles ready-assembled with tubings, manifolds, and filters providing access to the cell culture area via a single aseptic connection.

One Bottle Pack is required per rotor and once placed in the rotor, RC-40 Bottle Packs enable all further processing to be performed without additional bottle handling by the system operator.

These unique Bottle Packs provide a closed production environment, virtually eliminating handling related contaminations.

1 - 1 of 1 Part Numbers
RC-40 (MARK 2)
RC-40 (MARK 2)
RC-40 (MARK 2) Roller Bottle System
1 - 1 of 1 Part Numbers

Specifications

Brand

Rotor Speed

  • 0.1 to 12 rpm

Delivery Accuracy

  • - < 0 +/5 %

Power Supply

  • 90-264 Vac, 47 to 63 Hz, 5A

Temperature Range

  • 0° to 40° C

Humidity

  • 0 to 95 % RH, Non-condensing

Dimensions

  • 1.98 m High, 0.95 m Wide, 0.71 m Deep

Weight

  • Machine Only: 76 kg
  • With Packs Loaded and 40 L Media: 132 kg
  • With 40 L Media and Battery Backup: 144 kg
  • Shipping Weight: 110 kg

  • Well Suited to All Adherent Based Vaccines and Viral Vector Processes (MDCK, VERO, PERC6, HEK-293), “Clean Cells” for Fermenter Cultures and Recombinant Proteins.
