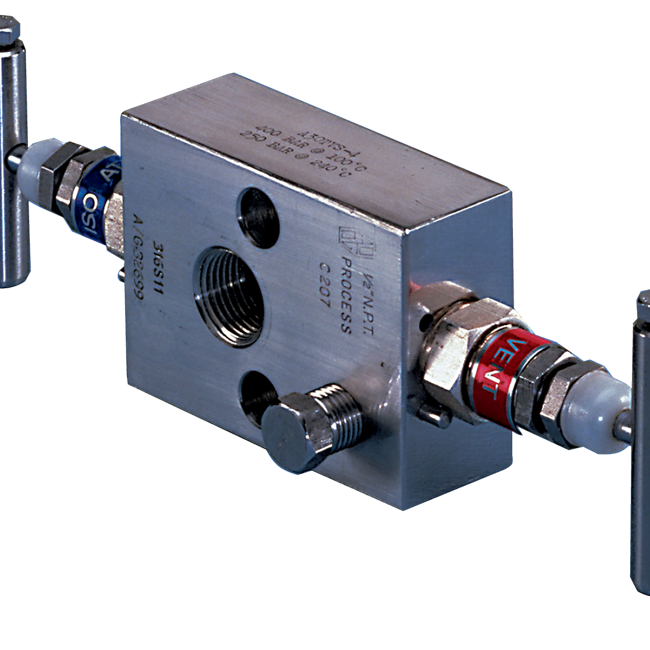

Anderson Greenwood Model A30 2 Differential Pressure Manifolds
Brand: Anderson Greenwood by EmersonA direct mounting two-valve manifold which combines an isolation valve and a vent/calibrate valve in a single unit for static pressures.
Features- Direct mounting compact design requires minimum space for operation and installation, with fewer potential leak points.
- Free-swivelling ball end stem ensures perfect alignment, providing repetitive bubble-tight shutoff and long life.
- PTFE or graphite packing below stem threads prevents lubricant washout and thread corrosion.
- Back seat stem prevents blowout or accidental removal while in operation.
- Threaded vent ports allow vent to be safely piped away. Supplied plugged as standard.
- Two 7/16” UNF bolts and an instrument seal ring supplied as standard.
- Standard pipe bracket bolts directly to the manifold providing a rigid support for the transmitter. Instrument can be removed easily for service or repair.
