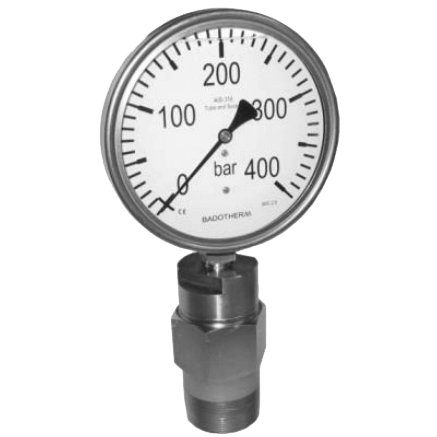

Badotherm Mud Pump Pressure Gauge, BDT15

BDT15 Mud Pump Pressure Gauge

Brand: Badotherm
Add Product to My Catalog

Badotherm pressure gauge model BDT15 is available in 160 mm diameter. The standpipe mud pump pressure gauge is a heavy duty gauge specially designed for oil well drilling applications.

The unit will withstands high pressure pulsations and is vibration proof up to maximum 15 Hz with amplitude of 1 mm. The internal system consists of a stainless steel diaphragm separator combined with a bourdon tube, filled with a pressure transferring fluid. The instrument is protected against hammer and pressure peaks by means of a internal peak restrictor device.

Specifications

Brand

Accuracy

  • 1.6 % of Full Scale Deflection

Ambient Temperature Range

  • -40° to 60° C (-40° to 140° F)

Applications

  • Oil Well Drilling Applications

Approvals & Certifications

  • IEC 60529
  • PED
  • Calibration Certificate with 5-Points (Rising & Falling)
  • Conformance Certificate 2.1, 2.2, 3.1 & KIM
  • EN 837-1, 837-2

Bezel Material

  • AISI 304 Stainless Steel

Diaphragm Material

  • AISI 316 Stainless Steel Protected with Rubber
  • Polyurethane

Enclosure, Body Material

  • AISI 304 Stainless Steel

Environmental Protection

  • IP65

Fill Material

  • Silicone

Lens

  • Safety Glass

Materials of Construction

  • Pointer & Dial: Aluminum
  • Tube & Socket: AISI 316 Stainless Steel

Mounting

  • Direct Mounting
  • Panel Mounting
  • Surface Mounting

Movement

  • Stainless Steel

NPT Connection

  • 2" Male LP / NPT

Operating Pressure

  • Fluctuating: 90 % of Full Scale Value
  • Steady: Full Scale Value

Overpressure & Static Pressure Limits

  • Overpressure (Short Time): 1.10 x Full Scale Value for psi: 8,717 to 23,210 (kPa: 60,100 to 160,000, bar: 601 to 1,600) at 20° C (68° F)
  • Overpressure (Short Time): 1.15 x Full Scale Value for psi: 1,465 to 8,702 (kPa: 10,100 to 60,000, bar: 101 to 600) at 20° C (68° F)

Pressure Range

  • bar: 250 to 1,000
  • kPa: 25,000 to 100,000
  • psi: 3,626 to 14,500

Process Temperature

  • Filling Fluid: 90° C (194° F)
  • Without Filling Fluid: 200° C (392° F)

Size

  • 6.29" (160 mm)

  • Oil Well Drilling Applications
