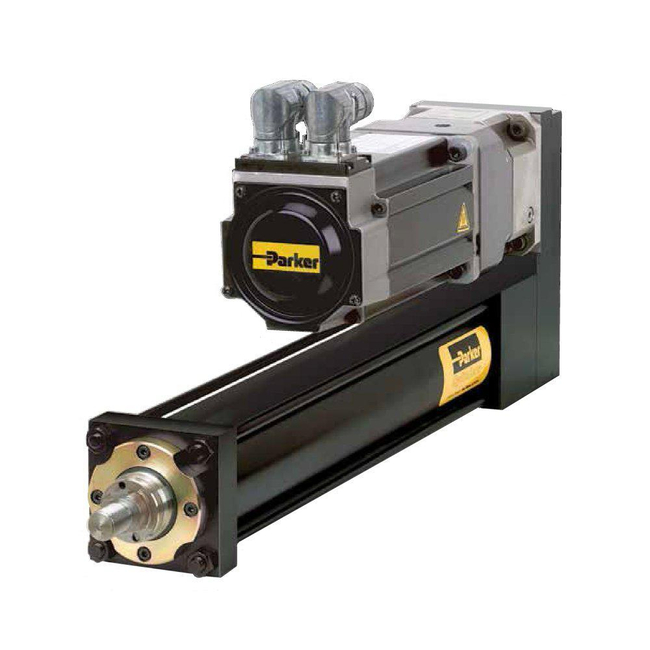

XFC165 Extreme-Force Screw Drive Electric Cylinder/Actuator

Brand: Parker Hannifin

XFC165 actuators utilize roller screw technology to attain thrust forces up to 53000lbs.

These electric cylinders are made of an all steel construction and are built to a standard metric hydraulic cylinder design for easy integration into your system.

Specifications

Additional Protection Option

  • None

Corrosion Resistant Option

  • Yes (Stainless Steel)

Drive Type

  • Screw

IP Protection Rating

  • IP00

Maximum Acceleration (Inch/S2)

  • 773

Maximum Acceleration (m/S2)

  • 19.6

Maximum Speed (inch/sec)

  • 28

Maximum Speed (m/sec)

  • 0.71

Maximum Stroke (inch)

  • 78.7

Maximum Stroke (mm)

  • 2000

Maximum Thrust (Lbs)

  • 53000

Maximum Thrust (N)

  • 240000

Operating Temperature (°C)

  • -23° to +73° C (Standard Seals) / -23° to +110° C (Fluorocarbon Seals)

Operating Temperature (°F)

  • -10° to +165° F (Standard Seals) / -10° to +230° F (Fluorocarbon Seals)

Position Repeatability (± Inch)

  • 0.002

Position Repeatability (± mm)

  • 0.05

Profile Width (mm)

  • 165

Rod End Dimension

  • 165 mm Bore

Series

  • XFC
