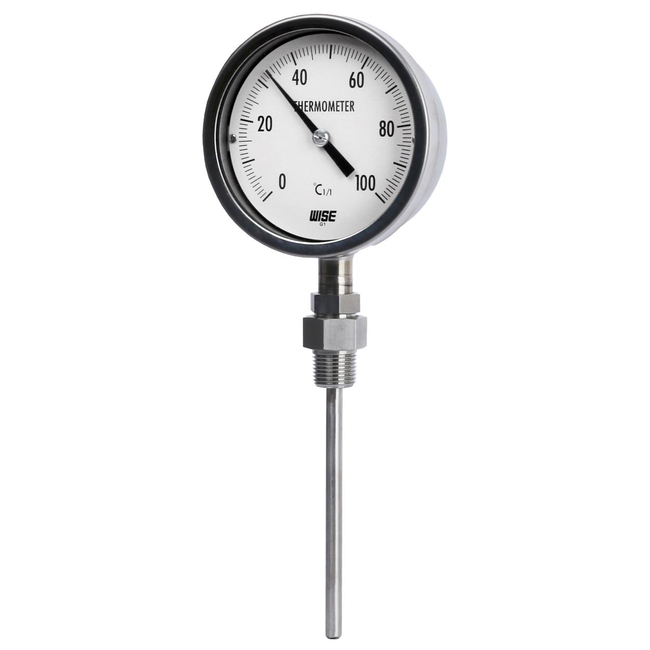

Wise Direct Reading Thermometer, T220

Direct Reading Thermometer T220

Brand: Wise Control Inc
Add Product to My Catalog

This thermometer is used for measuring temperature of corrosive and non-corrosive fluid in all industries.

It operates in aggressive and non-aggressive environment. Linear dials and temperature compensate line assure an accurate temperature indication at varying ambient conditions.

Specifications

Brand

Accuracy

  • ± 2.0 % of Full Scale

Case

  • 304 Stainless Steel

Cover

  • 304 Stainless Steel

Dial

  • White Aluminum with Black Graduations

Location of Stem

  • Bottom Connection, Direct Lower Back Connection, Direct

Measuring System (SAMA Class ⅢB)

  • Inert Gas: -200 ~ 700° C
  • Organic Gas: 0° to 200° C

Nominal Diameter

  • 100 & 150 mm

Options

  • ± 1.0 % of Full Scale

Pointer

  • 304 Stainless Steel, Black Painted

Stem

  • 8.0, 10.0 & 12.0 mm
  • 316 & 316L Stainless Steel

Stem, Process Connection

  • 3/8", 1/2", 3/4" PT, NPT & PF

Window Material

  • Tempered Safety Glass

Working Range

  • Maximum

Zero Adjustment

  • Internal

Documentation

Data Sheets
