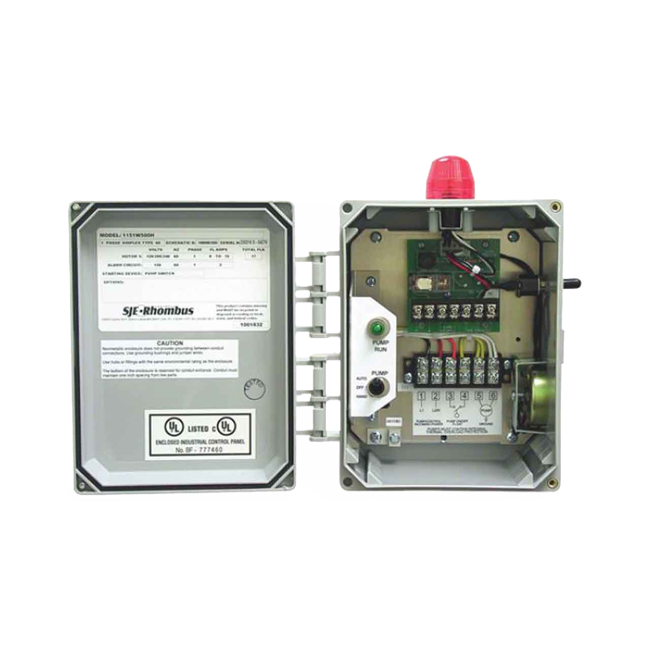

Model 115 Single Phase Simplex Pump Switch Control
Brand: SJE RhombusThe Model 115 Build-A-Panel™ control panel provides greater flexibility by ordering through options, allowing you to customize a standard panel to your specific needs.
The Model 115 control panel provides a reliable means of controlling one 120/208/240V single phase pump in water and wastewater applications.
A pump switch turns the pump on and off.
If an alarm condition occurs, an additional alarm switch activates the audio/visual alarm system.
Features- Choice of NEMA 1: Indoor or NEMA 4X: Indoor/Outdoor Enclosure
- Red Alarm Beacon Provides 360° Visual Check of Alarm Condition - NEMA 1 Style Uses a Door Mounted Indicator in Lieu of a Beacon
- Alarm Horn Provides Audio Warning of Alarm Condition - NEMA 1 Style Uses an Internally Mounted Buzzer in Lieu of a Horn
- Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition; Alarm Automatically Resets Once Alarm Condition is Cleared
- Horn Silence Relay
- Hand/Off/Automatic - HOA Switch for Manual Pump Control
- Green Pump Run Indicator Light
- Pump Circuit Terminal Block
- Alarm Circuit Terminal Block
- Alarm Fuse/Indicator
- Ground Lug
Specifications
Brand
Enclosure
- 8 x 6 x 4 inches / 20.32 x 15.24 x 10.16 cm
- Choice of NEMA 1 (steel for indoor use) or NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for indoor/outdoor use)
Alarm Horn
- 83 – 85 decibel rating
- Pump Chambers
- Sump Pump Basins
- Irrigation System
- Lift Stations
