Add the VTW Series Wafer-Cone Differential Pressure Flowmeter to your store or catalog
Book Your Demo and See How
or create your store

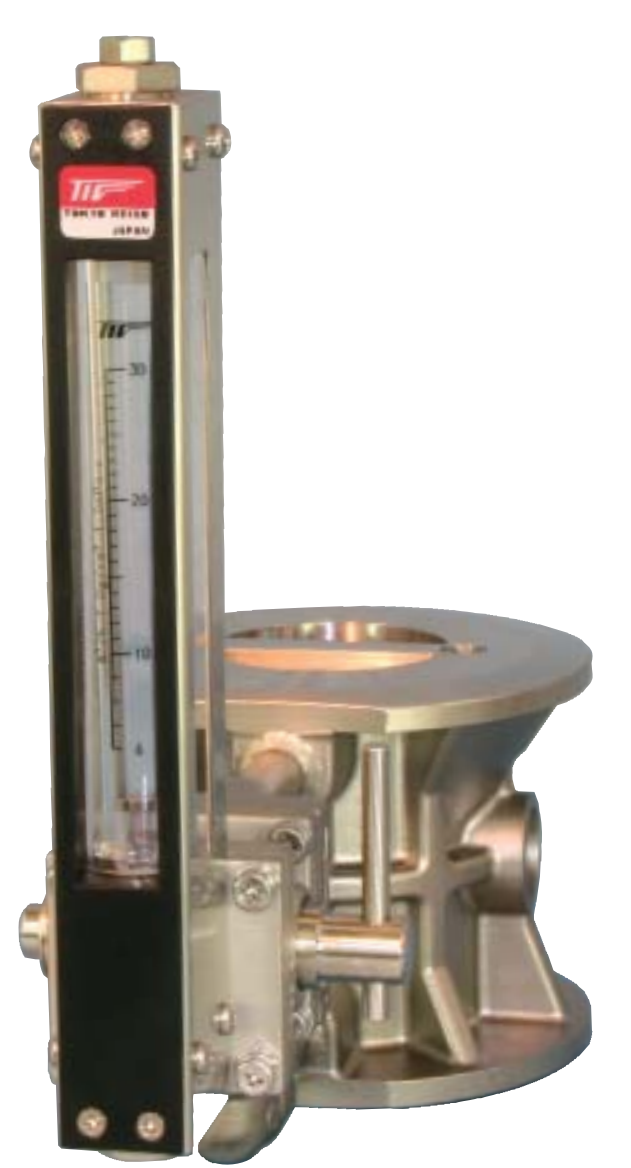

VTW Series Wafer-Cone Differential Pressure Flowmeter.png

VTW Series Wafer-Cone Differential Pressure Flowmeter

Brand: Tokyo Keiso Co, Ltd
Add Product to My Catalog

VH series Wafer-Cone® differential pressure flowmeter and small sized Variable Area flowmeter are integrated into one Wafer-Cone® bypass flowmeter.  As the meter requires little straight runs and little head loss compared to orifice plate, it offers you reduction of construction cost and energy saving.
Features
  •  Easy installation with self-centering mechanism
  • Less than 1/5 of orifice straight runs
  • Low pressure loss compared to orifices
  • Any flow direction acceptable and easy-to-change flow direction at field
  • Simple construction and easy maintenance

Specifications

Brand

Enclosure, Body Material

  • Cover: ABS
  • Detector Body: Cast Stainless Steel (SCS14A)

Flange Size - 1-1/2” (DN 40)

  • 1-1/2" (DN 40) - 150# ANSI
  • 1-1/2" (DN 40) - 300# ANSI
  • 1-1/2" (DN 40) - JIS 10K
  • 1-1/2" (DN 40) - JIS 20K
  • 1-1/2" (DN 40) - PN 16
  • 1-1/2" (DN 40) - PN 40

Flange Size - 1” (DN 25)

  • 1" (DN 25) - 150# ANSI
  • 1" (DN 25) - 300# ANSI
  • 1" (DN 25) - JIS 10K
  • 1" (DN 25) - JIS 20K
  • 1" (DN 25) - PN 16
  • 1" (DN 25) - PN 40

Flange Size - 2-1/2” (DN 65)

  • 2-1/2" (DN 65) - 150# ANSI
  • 2-1/2" (DN 65) - 300# ANSI
  • 2-1/2" (DN 65) - JIS 10K
  • 2-1/2" (DN 65) - JIS 20K
  • 2-1/2" (DN 65) - PN 16
  • 2-1/2" (DN 65) - PN 20

Flange Size - 2” (DN 50)

  • 2" (DN 50) - 150# ANSI
  • 2" (DN 50) - 300# ANSI
  • 2" (DN 50) - JIS 10K
  • 2" (DN 50) - JIS 20K
  • 2" (DN 50) - PN 16
  • 2" (DN 50) - PN 40

Flange Size - 3” (DN 80)

  • 3" (DN 80) - 150# ANSI
  • 3" (DN 80) - 300# ANSI
  • 3" (DN 80) - JIS 10K
  • 3" (DN 80) - JIS 20K
  • 3" (DN 80) - PN 16
  • 3" (DN 80) - PN 40

Flange Size - 4” (DN 100)

  • 4" (DN 100) - 150# ANSI
  • 4" (DN 100) - 300# ANSI
  • 4" (DN 100) - JIS 10K
  • 4" (DN 100) - JIS 20K
  • 4" (DN 100) - PN 16
  • 4" (DN 100) - PN 40

Materials of Construction

  • Cone: 316 Stainless Steel - SUS316
  • Float: Titanium
  • Scale Plate: Polycarbonate
  • Tapered Tube: Heat-Resistant Glass

O-Ring Material

  • O-Rings: Fluororubber

Documentation

Data Sheets
