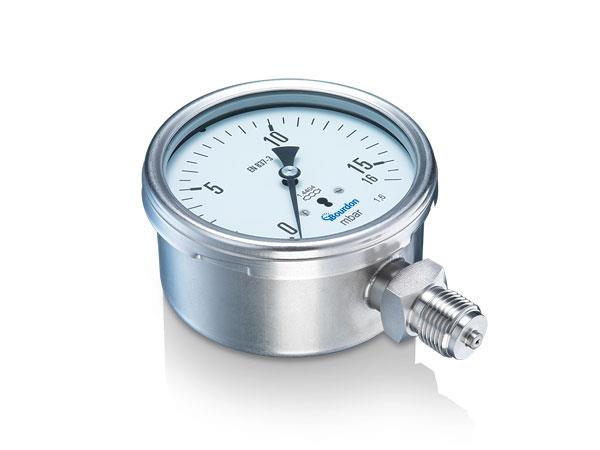

MCX5 Capsule Pressure Gauge
Brand: Bourdon
Features
- For corrosive gases and aggressive atmosphere
- Class 1.6 according to EN 837-3
- Wetted parts: Stainless steel and Viton® FKM
- Option: Case material 1.4404 (316L) for aggressive atmosphere
Specifications
Brand
Accuracy According to EN 837-3
- Class 1.6
Ambient Temperature Range
- -20° to +60° C
Approvals & Certifications
- Ex II 2 GDc-IM2c
Bezel Ring Material
- Stainless Steel 1.4301, AISI 304
- Stainless Steel 1.4404, AISI 316L, Optional
Capsule
- Stainless Steel 1.4404, AISI 316L
Case Material
- Stainless Steel 1.4301, AISI 304
- Stainless Steel 1.4404, AISI 316L, Optional
Dial
- White, Aluminum
Gauge
- 600 G
IP Protection Rating
- IP65
Maximum Measuring Range
- 0 to 600 Mbar
Media Temperature
- -20° to +60° C
Minimum Measuring Range
- 0 to 16 Mbar
Movement Material
- Brass
Nominal Size
- 100 mm
Pointer
- Black, Aluminum
Pressure Limitation
- Fluctuating: 65 % of Full Scale Value
- Integrated Safety Valve allows short time overpressure for 20 x Full Scale Value for positive pressure ranges. (Not for vacuum & compound pressure ranges)
- Short Time: 100 % of Full Scale Value
- Steady: 75 % of Full Scale Value
Process Connection Material
- Stainless Steel 1.4404, AISI 316L
Storage Temperature
- -40° to +70° C
Window Gasket
- Elastomer
Window Material
- Instrument Glass
Zero Adjustment
- ± 10 % of Full Scale
- Adjustment Screw Accessible on the Front Side after Removing of Bezel Ring & Window
- Laboratory & Medical
- Oil & Gas / Chemical
- Machinery
