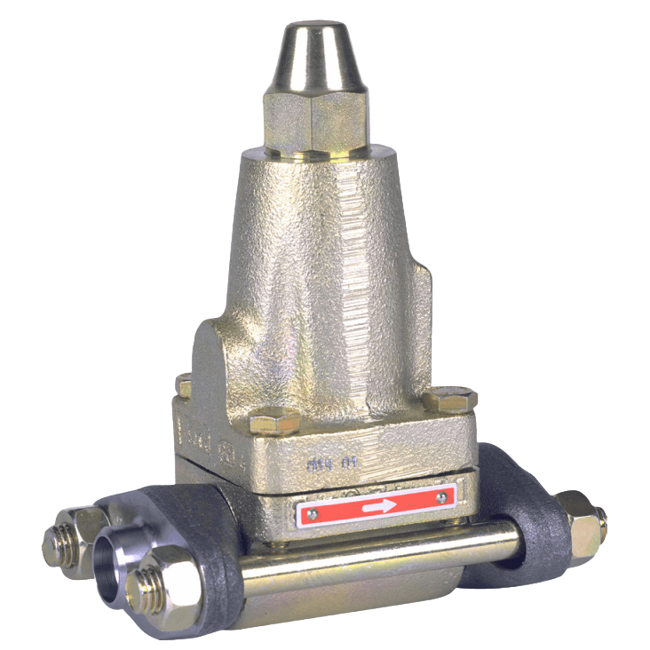

CVMD Constant Pressure Valve
Brand: DanfossCVMD is a constant pressure regulator for refrigeration and freezing plant in applications such as:
- Hot gas defrosting (drain lines)
- Refrigerant pump bypass (to ensure minimum flow in refrigerant pumps)
Specifications
Brand
Applications
- Freezing Plants
- Refrigeration Equipment
Approvals & Certifications
- BV
- CRN - Canadian Registration Number
- DNV
- EAC
Approvals & Certifications
- EN-GJS-400-18
Flow Capacity
- 1.7 Cv
Flow Rate
- 1.5 Kv (m³/hour)
Gasket Material
- Non-Asbestos
Media
- Refrigerants
Operating Pressure
- psi: 406.1 (kPa: 2,800, bar: 28) - Max.
Pressure Range
- psi: 0 to 102 (kPa: 0 to 700, bar: 0 to 7)
Process Temperature
- -50° to 120° C (-58° to 248° F)
Temperature Range
- 10° C (50° F) - Defrost Temperature
- -10° to -50° C (14° to -58° F) - Evaporating Temperature
- -50° to 120° C (-58° to 248° F)
Welded Connection
- 1/2" Weld End
- Refrigeration Equipment
- Freezing Plants
