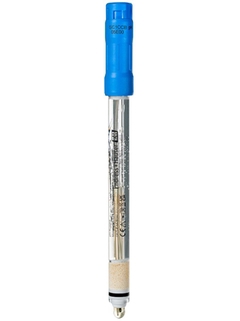

Digital pH sensor Memosens CPL59E
Brand: Endress+Hauser Group Services AG
The Memosens CPL59E starts to perform best, when other sensors cannot handle the conditions. The pH electode is suited for harsh conditions as e.g. in chemical and process industries. Due to the ion trap it offers a high stability to oxidizing agents. This protects the sensor and the junction from drift and inaccurate measurement.Features
- The ion trap provides excellent performance and long-term stability even in harsh environments such as oxidizing agents
- Large dirt-repellent PTFE-junction to avoid clogging
- Innovative Memosens 2.0 technology: true plug and play and optimal traceability
- Automatic registration and temperature compensation with the integrated temperature sensor
- Tamper-proof data storage including serial number and calibration history for required quality management
Specifications
Measuring principle
- Potentiometric
Application
- Measurements in demanding media in the chemical and process industry
Characteristic
- Digital Memosens 2.0 compact gel pH glass sensor for laboratory measurements
- and random sampling
- Rugged pH sensor with PTFE junction and ion trap
Measuring range
- pH 0 to 14
Material
- Glass
Dimension
- Diameter: 12 mm (0.47 inch)
- Shaft length: 120 mm (4.72 inch)
Process temperature
- 0 to 135 °C (32 to 275 °F) (0 to 100 °C (32 to 212 °F) application range)
Process pressure
- 1 bar, not intended for continues measurement in process
Temperature sensor
- NTC 30kΩ
Connection
- Inductive, digital connection head with Memosens 2.0 technology
Ingress protection
- IP68
- pH Value Setting in The Media
- Process Water of Chemical Industry
- Neutralization
- Mixture Monitoring
