LC Slurry Pump

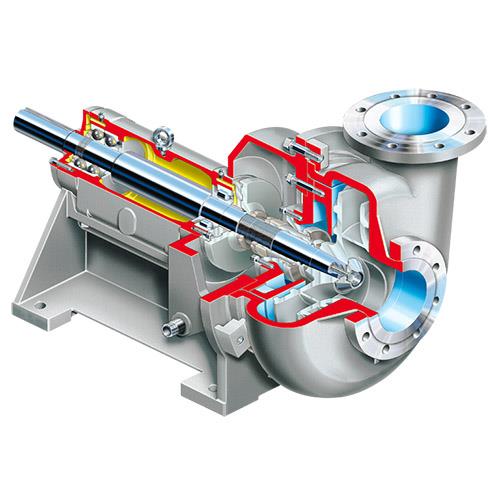

Brand: Flowserve CorporationThe LC chemical slurry pump is a horizontal, frame mounted, single stage, end suction design with a tangential discharge nozzle.
It is engineered to withstand the rigor of applications that are both abrasive and corrosive.
Features- Concentric Casing With Tangential Discharge.
- Rigid, One-Piece Bearing Frame With Two Angular Contact Outboard Bearings And Roller Inboard Bearings.
- Large Diameter, Heavy-Duty Shaft.
- Choice Of Shaft Sealing Options – Wet Gland Packing – Single Or Double Mechanical Seal – High-Pressure Double Mechanical Seal – Special High Solids Seals – Alumina Industry Seal.
- Choice Of Materials Of Construction.
- Multiple Impeller Designs.
- Direct-Coupled Or Belt-Driven.
- Choice Of Six Drive Arrangements.
- Options – Inducer – Stuffing Box Cooling System.
Specifications
Brand
LC-S
- Lineshaft, Chemical Slurry Sump
Operating Parameters
- Flows to 8000 m³/hour (35200 gpm)
- Heads to 90 m (300 ft)
- Pressures to 25 bar (360 psi)
- Specific Gravities to 1.7
- Temperatures to 140° C (285° F)
PL-C
- Cantilever, Chemical Slurry Sump
Size Range
- Discharge Sizes from 50 mm (2") to 450 mm (18")
