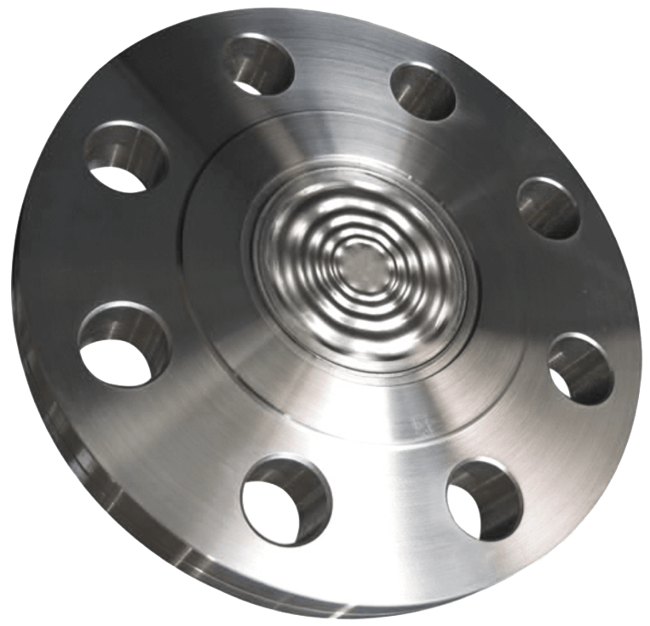

Winters Instruments Flanged Flush Mount Seal, D46

D46 Flanged Flush Mount Seal

Brand: Winters Instruments
Add Product to My Catalog

Features
  • One-piece design - no internal gaskets or o-rings
  • Diaphragm is flush to the gasket sealing surface so no internal cavities for media buildup
  • Various sizes available
  • ASME B40.100 compliant

1 - 12 of 12 Part Numbers
D462548
D462548
  • Flange Size - 2" (DN 50) - 150# RF (ASME B40.100)
  • Instrument Connections - 1/4" NPTF
D462549
D462549
  • Flange Size - 2" (DN 50) - 150# RF (ASME B40.100)
  • Instrument Connections - 1/2" NPTF
D462550
D462550
  • Flange Size - 2" (DN 50) - 300# RF (ASME B40.100)
  • Instrument Connections - 1/4" NPTF
D462551
D462551
  • Flange Size - 2" (DN 50) - 300# RF (ASME B40.100)
  • Instrument Connections - 1/2" NPTF
D462552
D462552
  • Flange Size - 2" (DN 50) - 600# RF (ASME B40.100)
  • Instrument Connections - 1/4" NPTF
D462553
D462553
  • Flange Size - 2" (DN 50) - 600# RF (ASME B40.100)
  • Instrument Connections - 1/2" NPTF
D462554
D462554
  • Flange Size - 3" (DN 80) - 150# RF (ASME B40.100)
  • Instrument Connections - 1/4" NPTF
D462555
D462555
  • Flange Size - 3" (DN 80) - 150# RF (ASME B40.100)
  • Instrument Connections - 1/2" NPTF
D462556
D462556
  • Flange Size - 3" (DN 80) - 300# RF (ASME B40.100)
  • Instrument Connections - 1/4" NPTF
D462557
D462557
  • Flange Size - 3" (DN 80) - 300# RF (ASME B40.100)
  • Instrument Connections - 1/2" NPTF
D462558
D462558
  • Flange Size - 3" (DN 80) - 600# RF (ASME B40.100)
  • Instrument Connections - 1/4" NPTF
D462559
D462559
  • Flange Size - 3" (DN 80) - 600# RF (ASME B40.100)
  • Instrument Connections - 1/2" NPTF
1 - 12 of 12 Part Numbers

View_Details

Specifications

Brand

Diaphragm Material

  • 316L Stainless Steel Bonded to Housing

Enclosure, Body Material

  • 316 Stainless Steel

Flange Size - 2” (DN 50)

  • 2" (DN 50) - 150# (ASME B40.100)
  • 2" (DN 50) - 300# (ASME B40.100)
  • 2" (DN 50) - 600# (ASME B40.100)

Flange Size - 3” (DN 80)

  • 3" (DN 80) - 150# (ASME B40.100)
  • 3" (DN 80) - 300# (ASME B40.100)
  • 3" (DN 80) - 600# (ASME B40.100)

Flange Type

  • Raised Face (RF)

Gauge Connection

  • 1/2" NPT Female
  • 1/4" NPT Female

Instrument Connection

  • 1/2" NPT Female
  • 1/4" NPT Female

Mounting

  • Flange Flush Mount

Pipe Connection

  • 1-1/2" Pipe (DN 40)
  • 2" Pipe (DN 50)
  • 3" Pipe (DN 80)

Pressure Range

  • bar: 2.07 to 89.7
  • kPa: 207 to 8,970
  • psi: 30 to 1,300

Temperature Range

  • 232° C (450° F) - Max.

  • Oil Refineries
  • Pulp and Paper Mills
  • Chemical Plants
  • Where Media Buildup is a Concern
