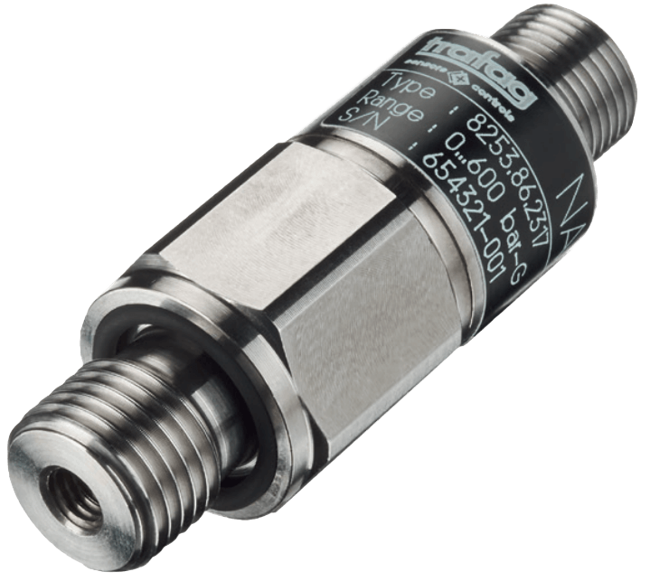

NAH 8253 Hydraulic Pressure Transmitter
Brand: Trafag Sensors & ControlsSwiss based Trafag is a leading international supplier of high quality sensors and monitoring instruments for measurement of pressure and temperature.
Features- Smallest design
- Accuracy classes 0.1%, 0.3%
- Excellent temperature resistance
- Improved vibration resistance
- Completely welded steel sensor system without additional seals
Specifications
Approvals & Certifications
- EMC
- IEC Emission: EN 61000-6-4, Immunity: EN 61000-6-2
BSP Connection
- G 1/4" Male
Enclosure, Body Material
- AISI 304 Stainless Steel 1.4301
Environmental Protection
- IP65
NPT Connection
- 1/4" NPT Male
Output
- Output Signal: 0-10 Vdc
- Output Signal: 4-20 mA
Pressure Range
- bar: 0 to 600
- kPa: 0 to 60,000
- psi: 0 to 8,702
UNF/UNC Connection
- 7/16"-20 UNF Female
- 7/16"-20 UNF Male
Wetted Materials
- Pressure Connection (> 250 bar): AISI 304 Stainless Steel, 1.4301
- Sensor, Pressure Connection (≤ 250 bar): AISI 630 Stainless Steel (1.4542)
- Test Benches
- Railways
- Machine Tools
- Hydraulics
- Process Technology
