Operator Station OS IT-667

Brand: R. STAHL AG

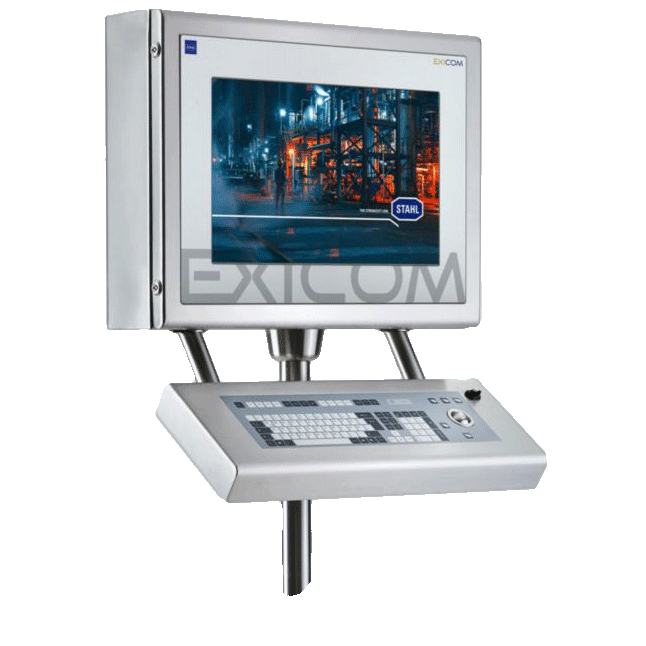

The OS IT-667-DVI3 HMI series includes KVM Operator Stations for safe areas.

Their brilliant 22" widescreen displays with a resolution of 1680 x 1050 pixels (format 16:10), are available with or without touch screen.

The stainless steel enclosures (SS304 or SS316L) are available with a front opening or in cleanroom-compliant design and with different mounting options.

Country-specific keyboards, pointer instruments and RFID and barcode scanners are useful accessories making work easier and extending functionality.

Depending on the distance to be crossed, you may choose from the following types of data transmission technology: via copper cable up to 150 m, via multimode fibre optic up to 550 m or via single mode fibre optic up to 10 km.

Features

KVM Operator Station, 22" display, 1680 x 1050
For installation in safe areas
Display of the 19" (1280 x 1024) resolution true to 5:4 format
Optional resistive glass or foil touch screen

1 - 1 of 1 Part Numbers

per page:

IT667A

R. STAHL KVM System Series 600 Device Platform MANTA

KVM Operator Station, 22" display, 1680 x 1050

For installation in safe areas

Display of the 19" (1280 x 1024) resolution true to 5:4 format

Optional resistive glass or foil touch screen

Ambient Conditions

Ambient temperature operation - -20 °C … +55 °C
Ambient temperature operation 1 - -30 °C … +55 °C with heater version O30
Cold start temperature - -10 °C
Storage temperature - -30 °C … +70 °C
Temperature note 1 - The O30 version is only available for the AC version devices !
Temperature note 2 - Operating temperature +55 °C for a maximum of 5 h, for constant operation (24/7) +50 °C.
Temperature note 3 - Cold start temperature: If the HMI device is switched on at a temperature below -10 °C the display will need a certain amount of time to warm up until everything is clearly visible. Depending on how low the temperature is, this process may take up to 3 hours.
Temperature note general - The temperature details apply to a standard device combination with display, keyboard and enclosure. Any additional built-in or added components may have an impact on / change these.

Components

Keyboard - optional, 107 keys with trackball / joystick / mouse / touchpad

Display

Backlight - LED Technology
Backlight service life - 50 000 h at +20 °C
Display brightness - 250 cd/m²
Display contrast - 1000:1
Display dimensions - 16:10
Display resolution - WSXGA+
Display size centimetres - 56
Display size inch - 22
Display version - TFT Colour display
Display version 2 - 16.7 million colours
Front plate (display) - Aluminium
Total pixels - 1680 x 1050
Touch screen - Optional resistive
Touch screen technology - 5-wire glass or membrane touch

Electrical Data

Connections - via standard plug
Data cable - 9/125 μm FO cable
Data cable length - max. 10 km
Ethernet / Data - Optical fibre single mode
Frequency range - 50 - 60 Hz
Interface Audio - 1 x Audio Line in / out
Interface medium - Single-mode optical fibre cable
Interface Serial - 1 x RS-232
Interface USB - 2 x USB (Hub) 1 x USB (Root) 2 x USB (Hub) (keyboard, pointing device)
Max. input voltage Um - 250 VAC
Plug version FO - LC duplex connector
Plug version USB - USB-A connector
Power consumption AC 1 - 1 A
Power consumption DC - 3 A
Protection fuse AC - 5 AT
Protection fuse DC - 5 AT
Rated operational power - typ. 50 W / 100 W with O30 / max. 150 W (typ. 170 BTU / 341 BTU with O30 / max. 510 BTU)
Rated operational voltage AC - 230 V
Rated operational voltage DC - 24 V
Transfer technology - KVM-DVI3
Voltage range AC - 100 - 240 V
Voltage range DC - 20 - 30 V
WLAN - optional via USB

Explosion Protection

Application range (zones) - Non-Ex

General

Functional Description - The OS IT-667-DVI3 HMI series includes KVM operator stations for safe areas. Their brilliant 22" widescreen displays with a resolution of 1680 x 1050 pixels (format 16:10), are available with or without touch screen. The stainless steel enclosures (SS304 or SS316L) are available with a front opening or in cleanroom-compliant design and with different mounting options. Country-specific keyboards, pointer instruments and RFID and barcode scanners are useful accessories making work easier and extending functionality. Data is transmitted via single mode fibre optic up to 10 km.
Highlights - KVM Operator Station, 22" display, 1680 x 1050 For installation in safe areas Display of the 19" (1280 x 1024) resolution true to 5:4 format Optional resistive glass or foil touch screen Data transmission via single mode fibre optic up to 10 km.
HMI type - Operator station
Product description - 22" KVM system
Product Description - KVM system SERIES 600 Device platform MANTA
Product Type - OS IT-667-DVI3-SM
Series - Product Series OS IT-667
Technology - Remote HMI KVM

HMI General

WebCode - IT667A

Mechanical Data

Breather - optional
Dimensions (WxHxD) - 740 mm x 872 mm x 400 mm
Ingress protection - IP66
Material back - Stainless steel
Material front - Aluminium / stainless steel
Mechanical data note - The mechanical data apply to an FR enclosure with display and keyboard. Other enclosure types as well as any additional built-in or added components may have an impact on / change these.
Weight - 42.5 kg

Mounting / Installation

Enclosure type - Stainless steel enclosure (FR) optional GMP / clean room (CFR)
Mounting option - Wall, elbow, stand
