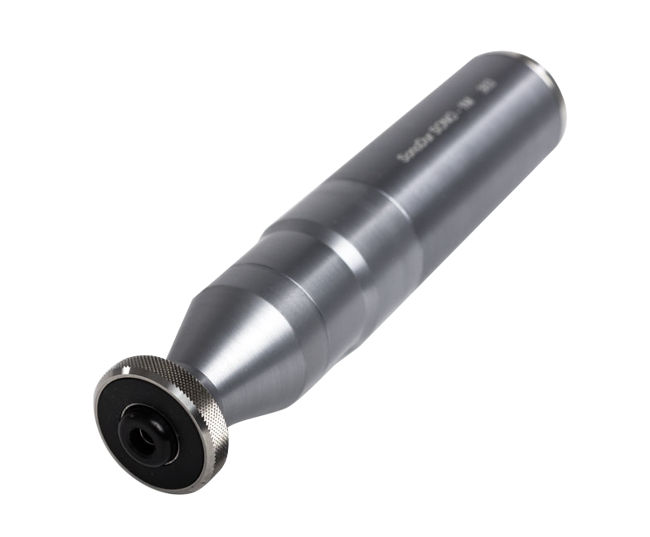

SONO-S (HV1 - HV10) Motorised Measurement Probe
Brand: Institut Dr. Foerster GmbH + Co. KGMotorised measurement probes have primarily been designed for measurements without an operator, stand or guidance aid, within a very narrow tolerance range. Hardness measurement consistency is ensured by the motorised measurement process.
Motorised measurement probes operate with significantly lower test forces (1N, 3N, 8.6N) than manual measurement probes, thus making them ideal for delicate surfaces which cannot tolerate a lot of testing pressure.
The integrated motorised controls ensure that measurements are made with practically no influence from the operator and that the period for which the test load is in effect can be adjusted to between 1 and 99 seconds.
The special force application properties (freely selectable penetration time point with constant test force) means that the visual assessment of Vickers indentations can also be performed at a later point. The material’s hardness is tested using the UCI method.
Our motorised measurement probes can be used with the mobile hardness testing device SonoDur2 as well as the SonoDur-R 'Rack'. They can be adapted to most devices using a standard USB interface.
Features- Robust mechanical construction, housing made from anodised aluminium - for everyday use. Long-term stability thanks to its special design
- State of the art signal processing within the probe which links via a standard USB interface to the display unit - making it universally compatible with most devices
- There is only minor scattering of measurement values which remains constant even in the case of high hardness levels
- Fully adjustable to almost all technical materials. The CAL number was designed to automatically compensate for the E-module
- Universally adaptable to most devices
- Highly flexible probe to display unit cable, custom lengths possible
- Low service costs thanks to a modular construction and replaceable Vickers diamonds in the event of repairs
- Reliable storage of calibration values
Specifications
Measuring Principle
- UCI Method, Corresponds to DIN 50159-1,-2, ASTM A1038
Test Indenter
- Vickers Diamond 136°
Hardness Scales and Range
- Vickers: HV 10 to 1999 (9999)
- Brinell: HB 76 to 618
- Rockwell: HRB 41 to 105; HRC 20.3 to 68; HRE 70 to 108.5; HRF 82.6 to 115.1; HRA 60.7 to 85.6; HRD 40.3 to 76.9; HR45N 19.9 to 75.4
- Knoop (ASTM E140 only: HK 87 to 920
- Shore (ASTM E140 only): HS 34.2 to 97.3
- Tensile Strength: MPa 255 to 2,180
Measurement Uncertainty
- < 4% (HV5, HV 10)
Relative Repeatability
- < 5% (HV5, HV 10)
Operating Temperature
- Probe: 0° to 50° C
Storage Temperature
- -20° to 70° C
Humidity
- Max. 90%, Non-condensing
Power Input
- 12–24 VDC, 6 W
Display
- TFT-Display 800 x 480 Pixel with LED-Backlight Touch-Screen
- Size (Inch/mm) 7.0/ 178, Luminance 400 cd/m2
Dust/Water-splash Proof
- IP20
- For Everyday Use
- For Thin and Delicate Surface Layers, Such As in The Printing Industry, Pistons, Plating
- Can Be Used With SonoDur2 and SonoDur-R As Well As Many Other Systems
- For Testing Surface Hardness - Copper Gravure Printing Industry, Automobile Sector
