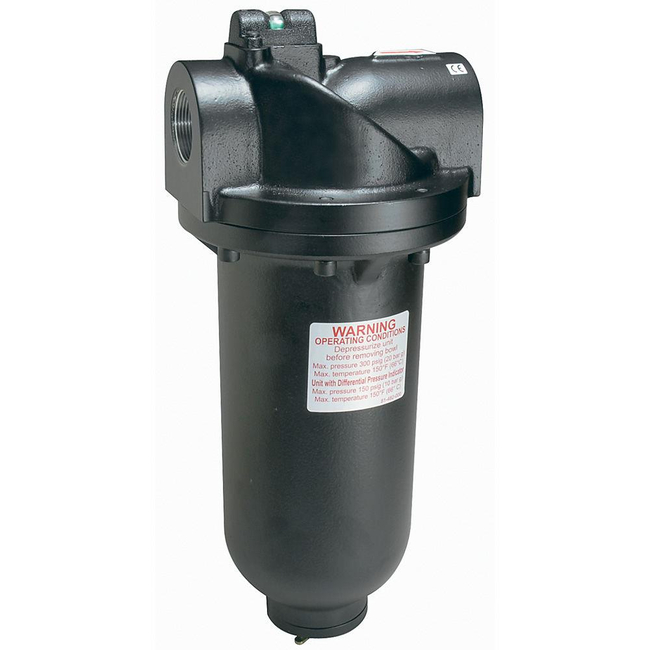

Main Line Particulate Filter - 35F/43F Series (High-Flow)
Brand: Parker HannifinParker's 35F/43F is a heavy duty, high flow particulate filter that delivers high moisture removal increasing efficiency within an industrial application.
The 35F/43F is used for the removal of solid particle contaminants down to 5 micron and the separation of bulk liquids.
This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system.
For specific flow and space restricted applications this product can provide a solution that does not sacrifice performance.
The 34F/43F has heavy duty cast aluminum housings to withstand operating pressures up to 250 PSIG and a differential pressure indicator to eliminate the guess work of element replacement.
The 34F/43F can easily be configured to your application.
Features- Robust design and construction to withstand operating pressures
- Easily configured to meet your design
Specifications
Brand
Body Material
- Aluminum
Bowl Material
- Aluminum
Drain Option
- Automatic Float Drain
Element
- 5 micron
Flow Rate (dm3/sec)
- 604 / 660 / 1368
Flow Rate (scfm)
- 1-1/2" = 1280 scfm / 2" = 1400 scfm / 3" = 2900 scfm
Maximum Inlet Pressure (bar)
- Without DPI = 17.2 bar / with DPI = 10.2 bar
Maximum Inlet Pressure (psig)
- Without DPI = 250 psig / with DPI = 150 psig
Operating Temperature (°C)
- 0° to 65.5° C
Operating Temperature (°F)
- 32° to 150° F
Port Size
- 1-1/2", 2", 3"
Port Type
- NPT, BSPP, BSPT
Product Type
- Hi-Flow Filter
Seal Material
- Fluorocarbon
Weight (kg)
- 35F = 8.7 kg / 43F = 14.9 kg
Weight (Lbs)
- 35F = 19.3 lb / 43F = 32.8 lb
- General Industrial
- Conveyance
- Packaging
- Assembly
