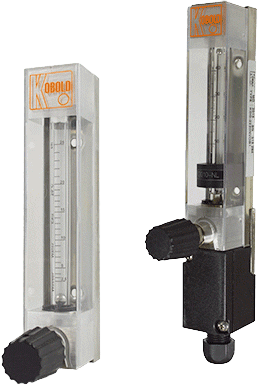

KDG / KDF-2 - Micro Flow Meter and Switch
Brand: KOBOLD Instruments, IncKOBOLD KDG/KDF-2 micro flow meters with switches operate on the variable-area, or rotameter, float principle and are designed for the measurement of very low gas and liquid flows.
Flow can be set exactly within the measuring range using the integral precision metering valve.
All ranges on this rotameter can be optionally fitted with 1 or 2 adjustable inductive proximity switches which may be configured to identify certain flow conditions.
Two flow switch types are available: 1.) Monostable: Switch activates momentarily as the stainless steel float passes by upon rising or falling flow or 2.) Bistable: Switch activates as the stainless steel float rises and remains active until the float falls past the switch on decreasing flow.
All micro flow meters with flow switches require the addition of a suitable external, NAMUR relay for operation.
A panel mounting kit is also available as an option.
Features- Integral Flow Control Valve
- Easy to Read Scale
- Compact Design
- Direct Reading Scales for Water and Air
- Switching for Low Flows
- Optional Panel Mounting Kit
- Certificates/Approvals: ATEX
Specifications
Brand
Available Measuring Ranges
- 0.25-2.5 L/hr to 16-160 L/h
- 0.5-5 Nl/h to 500-5000 Nl/h
Fittings
- 1.4" NPT Thread, Hose Connection
Materials
- Stainless Steel
- Glass
- FPM Seals
- FFKM Seals Optional
Maximum Pressure
- 230 psig
Maximum Media Temperature
- 212° F
- 158° F with Switch
Media Categories
- Gas
- Liquid
