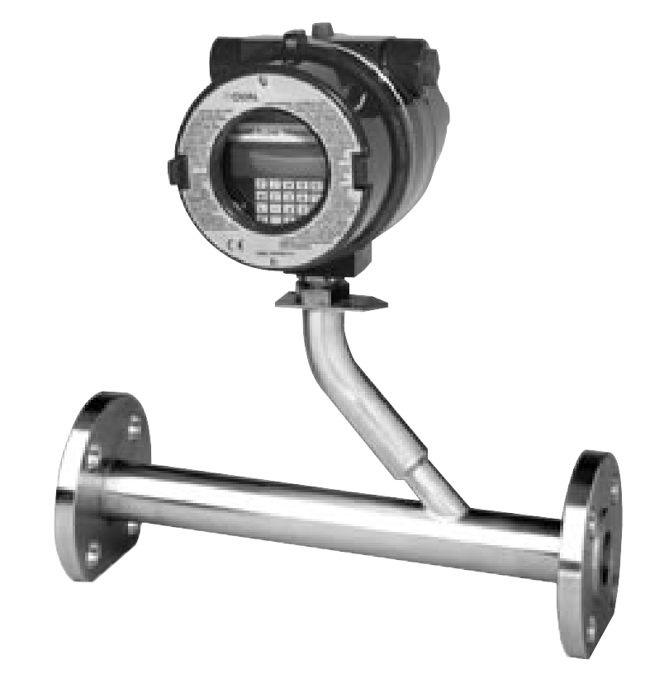

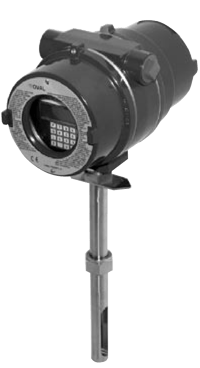

Insertion, In-Line Type & Portable Type Thermal Mass Flowmeter
Brand: Oval Corporation
Features
- A new generation of thermal dispersion flowmeters: Full digital control has eliminated the need of a bridge circuit
- Long life and high reliability. Plus increased maintainability
Specifications
Brand
Approvals & Certifications
- ATEX
- CSA
- IECEx
- TIIS
Communication
- HART
- Modbus (RS-485)
- PROFIBUS DP
- RS-232, RS-485
- USB
Enclosure Finish
- Transmitter: Epoxy Resin Coat
Enclosure, Body Material
- Sensor Support: 316 Stainless Steel (Standard)
- Sensor, Sensor Support - Alloy C-276
- Transmitter: Aluminum Alloy
Environmental Protection
- IP66
Flange Size - 1-1/2” (DN 40)
- 1-1/2" (DN 40) - 150# ANSI
- 1-1/2" (DN 40) - 300# ANSI
- 1-1/2" (DN 40) - JIS 10K
Flange Size - 1” (DN 25)
- 1" (DN 25) - 150# ASME
- 1" (DN 25) - 300# ASME
- 1" (DN 25) - JIS 10K
Flange Size - 1/2” (DN 15)
- 1/2" (DN 15) - 150# ASME
- 1/2" (DN 15) - 300# ASME
- 1/2" (DN 15) - JIS 10K
Flange Size - 2-1/2” (DN 65)
- 2-1/2" (DN 65) - 150# ANSI
- 2-1/2" (DN 65) - 300# ANSI
- 2-1/2" (DN 65) - JIS 10K
Flange Size - 2” (DN 50)
- 2" (DN 50) - 150# ANSI
- 2" (DN 50) - 300# ANSI
- 2" (DN 50) - JIS 10K
Flange Size - 3” (DN 80)
- 3" (DN 80) - 150# ANSI
- 3" (DN 80) - 300# ANSI
- 3" (DN 80) - JIS 10K
Flange Size - 3/4” (DN 20)
- 3/4" (DN 20) - 150# ANSI
- 3/4" (DN 20) - 300#
- 3/4" (DN 20) - JIS 10K
Flange Size - 4” (DN 100)
- 4" (DN 100) - 150# ANSI
- 4" (DN 100) - 300# ANSI
- 4" (DN 100) - JIS 10K
Flange Size - 6” (DN 150)
- 6" (DN 150) - 150# ANSI
- 6" (DN 150) - 300# ANSI
- 6" (DN 150) - JIS 10K
Flange Size - 8” (DN 200)
- 8" (DN 200) - 150# ANSI
- 8" (DN 200) - 300# ANSI
- 8" (DN 200) - JIS 10K
NPT Connection
- 3/4" NPT
