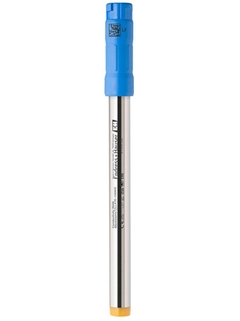

Digital conductivity sensor Memosens CLL47E
Brand: Endress+Hauser Group Services AG
Memosens CLL47E is the four-electrode conductivity sensor for random sampling and measurements in the laboratory. It merges easy handling with plug and play system with effortless cleaning thanks to the seamless design. With its platinum electrodes and wide measuring range, a large variety of samples can be covered while delivering reliable measurements right at the measuring point.Features
- Wide range of measurement allows for analysis of many different samples
- Precise adjustment and reliable measurement with a quality cerificate stating individual cell constant
- Easy to clean thanks to seamless design
- Solid platinum electrodes provide easy maintenance and long lifetime
- Benefit from Memosens 2.0 technology with implemented cell constante, true plug and play and traceable calibration history
- Integrated temperature sensor for automatic temperature compensation
- Supports the requirements of quality management with tamper-proof data storage including serial number and calibration history
Specifications
Measuring principle
- Conductive
Application
- Measurements where a broad conductivity measurement range in one system is needed
Characteristic
- Digital Memsoens 2.0 conductive conductivity sensor with four platinum electrodes for a broad measuring range.
Measuring range
- 5 μS/cm to 200 mS/cm
Material
- Stainless steel, ceramic, platinum
Dimension
- Diameter: 12 mm (0.47 inch)
- Shaft length: 120 mm (4.72 inch)
Process temperature
- 0 to 100 °C (32 to 212 °F)
Process pressure
- 1 bar, not intended for continuous measurement in process
Temperature sensor
- Pt1000
Connection
- Inductive, digital connection head with Memosens 2.0 technology
Ingress protection
- IP68
- Laboratory and Sample Measurement in The Field
