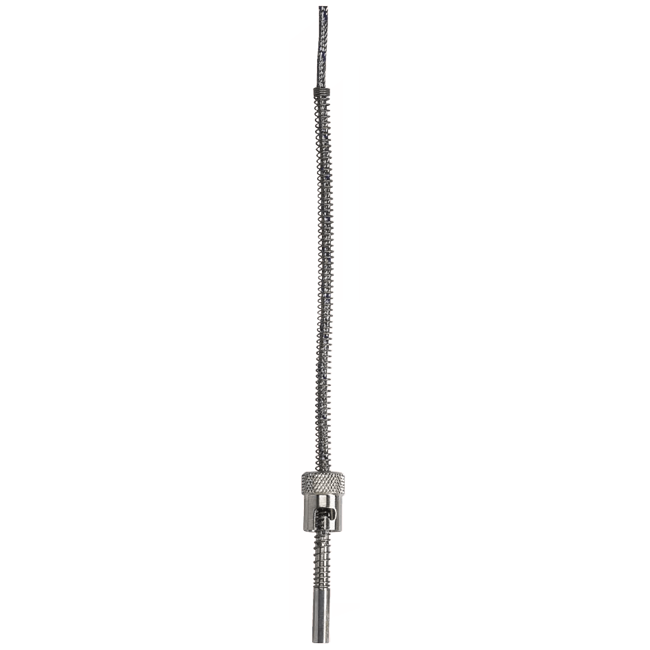

TWE-5 Resistance Thermometer
Brand: KOBOLD Instruments, IncThe insertion resistance thermometers comprise a rugged sensor made of stainless steel. Due to the special form of the probe tip, these temperature detectors are suitable for service in threaded borings.
The thermostable compression spring made of stainless steel, which also acts as bend protection, ensures steady contact pressure of the probe tip in the hole. The immersion length can be varied by rotating the bayonet lock.
Bayonet locks and counterparts are available in 6 and 8 mm diameter, others upon request.
Pt 100 temperature sensors according to IEC 751, class B are used as standard. Other categories or versions are also available with Pt 500 and Pt 1000. These sensors are available as single or double resistance thermometers.
The screw-in resistance thermometers are available in two-, three- or four-wire circuitry.
Specifications
Brand
Applications
- Plastic Machinery
- Temperature Measurement
Cable Length
- 8.2 ft (2.5 m) Standard
Cable Material
- Stainless Steel
Connection Material
- Glass Fibre
Electrical Connectors
- Braided Cable, 0.22 mm²
Materials of Construction
- 316Ti Stainless Steel - Protective Tube
Media
- Solids
Sensor / Probe Connection
- 2-Wire
- 3-Wire
- 4-Wire
Sensor / Probe Type
- Pt100
- Pt1000
- Pt500
Temperature Range
- -20° to 350° C (-4° to 662° F)
