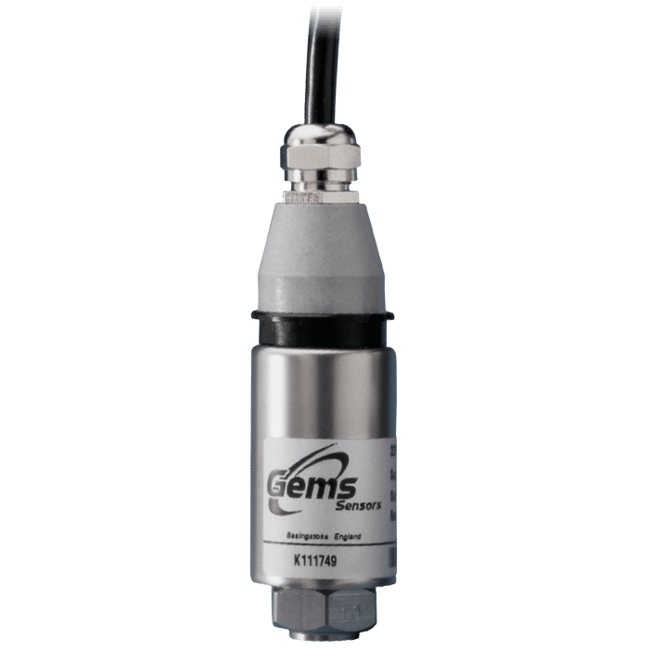

22CS/26CS Series Industrial Pressure Sensor

Brand: Gems Sensors, Inc

Certified by CSA for Canada and USA, the 22CS and 26CS Series intrinsically safe pressure transmitters are designed to withstand the rigors of the most difficult applications.

An all-stainless steel construction, eliminates the need for seals and oil barriers that can deteriorate over time.

Incorporating Gems CVD Sensors and ASIC technology the 22CS and 26CS Series offer long term reliability, excellent performance and long term stability ensuring long service life without routine maintenance.

Available with a wide choice of pressure fittings and electrical connections rated from IP 65 to fully immersible (IP 68 200 m WG).
Features
  • Ranges from 7.5 to 6,000 psi (0.5 to 400 bar) and 0-300 psi (0-25 bar) Absolute
  • Voltage and 2 Wire 4-20mA output models
  • All stainless steel wetted parts

Specifications

Accuracy

  • 0.15 % of Full Scale (Optional)
  • 0.25 % of Full Scale - Typical

Approvals & Certifications

  • CE Marking of EN 50081-2 for Emission, EN 50082-2 for Susceptibility
  • CSA: Class I, Div. 1, Grade A, B, C, D & Class II, Div. 1, Groups E, F, G & Class III

Approvals & Certifications

  • EN 61000-4-2, EN V50140, EN V50204, EN 61000-4-4, EN V50141

BSP Connection

  • G 1/2" Male (Manometer)
  • G 1/4" Female
  • G 1/4" Male
  • G 1/8" Female
  • 1/4" BSPT Male

Burst Pressure

  • > 20 x Full Scale ≤ psi: 1,000 (kPa: 6,895, bar: 60)
  • > 35 x Full Scale ≤ psi: 100 (kPa: 689.5, bar: 6)
  • > 5 x Full Scale ≤ psi: 6,000 (kPa: 41,370, bar: 400)

Cable Length

  • 0 to 160 metres (0 to 525 ft)

Compensated Temperature

  • -20° to +80° C (-5° to +180° F)

Constant Acceleration

  • 100 G

Current

  • Current Consumption: Approximately 6 mA at 7.5 V Output

Electrical Connectors

  • Conduit Connector 1/2" NPT External (1 m) Cable
  • Fixed Plug Size 10-6 Mating Plug
  • Fixed Plug to DIN 43650 Mating Plug
  • Industrial DIN Mating Connector

Enclosure, Body Material

  • 316 Stainless Steel
  • AISI 630 Stainless Steel, 17-4 PH

Environmental Protection

  • IP65
  • IP67 Weatherproof Cable Gland
  • IP68
  • NEMA 4 Cable

Measuring Error

  • Thermal Error: 1.5 % of Full Scale - Typical

NPT Connection

  • 1/4"-18 NPT Male
  • 1/8"-27 Male NPT

Operating Temperature

  • -40° to 125° C (-40° to 260° F)

Output

  • 0.1-5.1 V
  • 0.2 to 10.2 V
  • 0.5 - 5.5 V
  • 0-10 V
  • 0-5 V
  • 1-11 V
  • 1-5 V
  • 1-6 V
  • 4-20 mA, 2-Wire

Pressure Range

  • bar: -1 to 400
  • kPa: -103.4 to 41,340
  • psi: -15 to 6,000

Pressure Type

  • Absolute
  • Compound Pressure
  • Gauge
  • Vacuum

Proof Pressure

  • 1.5 x Full Scale for psi: ≥ 5,000 (kPa: 34,470, bar: 344.7)
  • 2 x Full Scale

SAE Connection

  • 7/16"-20 SAE Male (J514)

Sensitivity

  • Supply Voltage Sensitivity: 0.01 % of Full Scale/Volt

Supply Voltage

  • 1.5 Vdc Above FSO to 28 Vdc
  • 24 Vdc
  • 7-28 Vdc

Thermal Drift

  • 0.2 % of Full Scale Per Year (Non-Cumulative)

Tolerance

  • Zero & Span Tolerance: 1 % of Span

UNF/UNC Connection

  • 7/16"-20 UNF Male

Vibration

  • 35 G

Wetted Materials

  • AISI 630 Stainless Steel, 17-4 PH
