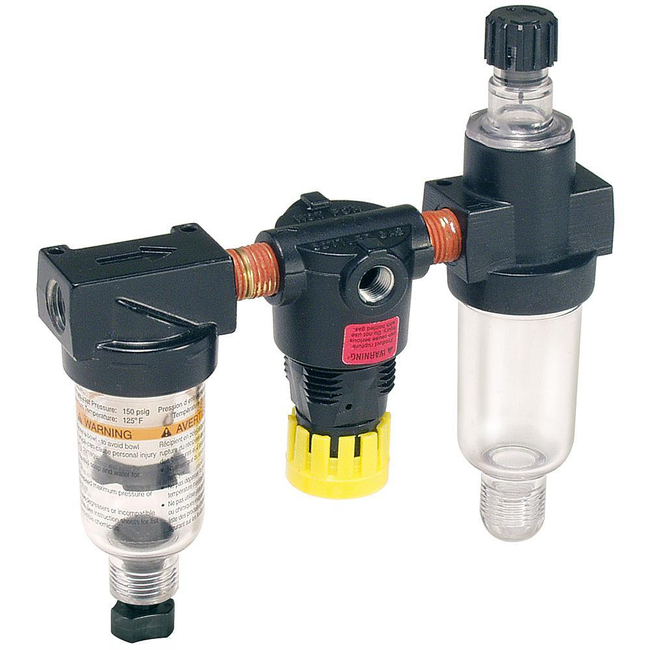

Pipe Nippled FRL 3-Piece Combo - 14A Series
Brand: Parker HannifinParker's 14A is a 3-piece pipe nippled particulate filter, regulator and micro mist style lubricator that provides accurate pressure regulation, high moisture removal efficiency and proportional oil delivery over a wide range of air flows.
The 14A is built as one easily configurable part number.
Features- Accurate pressure regulation
- High moisture removal efficiency
Specifications
Brand
Body Material
- Zinc
Bowl Material
- Zinc / Transparent Polycarbonate
Drain Option
- Pulse / Manual
Element
- 5 µ / 40 µ
Flow Rate (dm3/sec)
- 25 (1/4") / 37 (3/8") / 40 (1/2")
Flow Rate (scfm)
- 22 (1/8") / 24 (1/4")
Lubricator Option
- No Fill Plug
Maximum Inlet Pressure (bar)
- 17.2
Maximum Inlet Pressure (psig)
- 250
Operating Temperature (°C)
- 0° to +52° C / 0° to +80° C (Metal Bowl)
Operating Temperature (°F)
- +32° to +125° F / +32° to +175° F (Metal Bowl)
Port Size
- 1/8", 1/4"
Port Type
- NPT, BSPP, BSPT
Pressure Regulator Type
- Relieving / Non-Relieving
Product Type
- 3-Unit Close Nippled Combination Miniature
Seal Material
- Nitrile
- General Industrial
- Packaging
- Conveyance
- Production Lines
- Assembly
