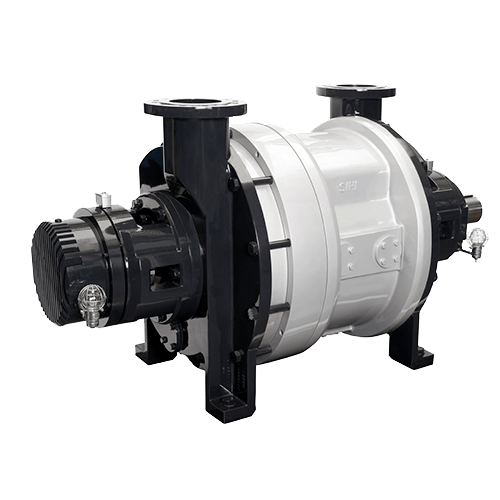

KPH Liquid Ring Vacuum Pump

Brand: Flowserve SIHI
Add Product to My Catalog

Liquid ring compressors of the series KPH are one to three-stage displacement compressors of simple and robust construction.
Features
  • Pumping of nearly all gases and vapors.
  • Non polluting due to a nearly isothermal compression.
  • Oil-free, as no lubrication in the working chamber.
  • Additional liquid can be handled with the gas flow.
  • Easy maintenance and reliable operation.
  • Low noise and nearly free from vibration.
  • Wide choice of material, therefore applicable nearly anywhere.
  • Incorporated central drain.
  • No metallic contact of the rotating parts.
  • Full API 681 compliance.

Specifications

Brand

Operating Parameters

  • Flows to 3400 m³/h (2000 CFM)
  • Hydraulic overpressure test 22,5 barg (326 psig)
  • Pressures to 12 barg (174 psig)
  • Service Liquid Max. admissible Temperature 80° C (183° F)
  • Temperatures to 100° C (212° F)

Size Range

  • From DN 50 (2 in) to DN 200 (8 in)

Documentation

Brochure
