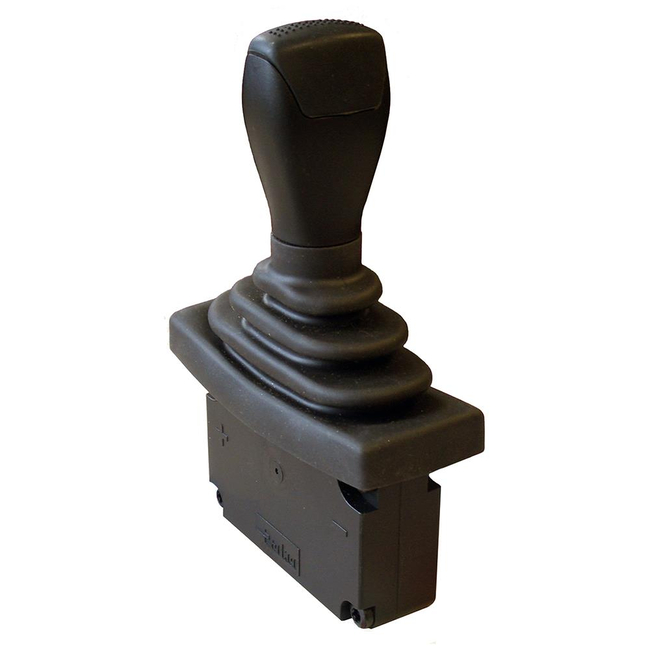

Large Lever, Analog, Hall-Effect, Single Axis - IQAN-LSL
Brand: Parker HannifinParker’s IQAN-LSL is an analog, lever style joystick in the IQAN product group.
This single axis lever has a compact design and several options, including a manual neutral detent and a switch in the top of the handle.
The standard IQAN-LSL has an IP65 rating above the flange and the cable has a choice of popular sealed transportation connectors.
This unit is designed for the outdoor environment.
The IQAN-LSL is perfect for mounting in the armrest or on the dashboard in mobile vehicles.
It has a comfortable grip and is easily actuated for good ergonomics.
Features- Dual Hall-effect sensors provide redundancy
- Industry standard 0-5 V signal range
- Built-in drainage will protect the electronics in case of a damaged bellow
- Switch and detent options available
Specifications
Brand
Electrical Connectors
- AMP/Tyco (Saab), Deutsch DT
Function
- Single Axis
Handle
- No Switch, No Switch, Manual Center Detent, with Switch, with Switch, Manual Center Detent, No Handle
IP Protection Rating
- IP65 (Above Flange), IP44 (Above Flange), IP65 (Above Flange, with Suitable Handle Installed)
Voltage (Vdc)
- 5
Working Temperature (°C) Maximum
- 70° C
Working Temperature (°C) Minimum
- -40° C
- Boom Extend/Retract Control
- Plow and Spreader Control
- Fork Lift Control
