GLL170 Fiber-Optic Sensor
Brand: Sick AGThe GLL170 fiber-optic sensor is the reliable solution for all detection tasks in combination with the fibers in the LL3 product family.
With its simple operating concept, the sensor is ideal for applications in harsh environments as well as when rapid response times are crucial.

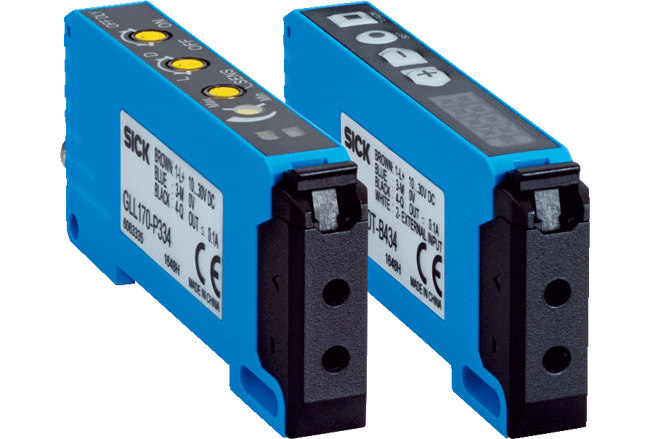

Different variants are available to suit all requirements: The GLL170 variant with potentiometer enables quick and easy commissioning thanks to its intuitive operation.
The GLL170T variant with teach-in function features a display for direct sensor feedback and provides solutions for numerous applications with its range of adjustments.
With a switching frequency of up to 10 kHz, this sensor can even handle rapid processes with ease.
Features- User-friendly handling enables fast commissioning
- Reliable detection even in rapid processes
- Easy to adjust with intuitive potentiometer or teach-in button
- Rugged sensor housing enables mounting outside the control cabinet
- Sensor parameters can be flexibly adapted to a diverse range of applications (teach-in variant)
- Easy monitoring of process parameters (teach-in variant)
- Quick and easy mounting on a mounting rail or using the fixing holes on the sensor
- Can be combined with fibers from the extensive SICK portfolio to form solutions for numerous applications
1 - 12 of 18 Part Numbers
6063334
- Sensing Range - Max. 0 to 800 mm*
- Connection Type - Cable, 3-Wire
- Type - GLL170-P332
6063335
- Sensing Range - Max. 0 to 800 mm*
- Connection Type - Male Connector M8, 4-Pin
- Type - GLL170-P334
6063336
- Sensing Range - Max. 0 to 800 mm*
- Connection Type - Connector M8, 3-Pin
- Type - GLL170-P333
6063337
- Sensing Range - Max. 0 to 800 mm*
- Connection Type - Cable, 3-Wire
- Type - GLL170-N332
6063338
- Sensing Range - Max. 0 to 800 mm*
- Connection Type - Male Connector M8, 4-Pin
- Type - GLL170-N334
6063339
- Sensing Range - Max. 0 to 800 mm*
- Connection Type - Connector M8, 3-Pin
- Type - GLL170-N333
6063340
- Sensing Range - Max. 0 to 800 mm*
- Type - GLL170T-B432
6063341
- Sensing Range - Max. 0 to 1,320 mm**
- Connection Type - Male Connector M8, 4-Pin
- Type - GLL170T-B434
6063342
- Sensing Range - Max. 0 to 1,320 mm**
- Connection Type - Connector M8, 3-Pin
- Type - GLL170T-B333
6067015
- Sensing Range - Max. 0 to 800 mm*
- Type - GLL170T-B432S01
6068136
- Sensing Range - Max. 0 to 800 mm*
- Connection Type - Cable, 3-Wire
- Type - GLL170-P332S03
6068137
- Sensing Range - Max. 0 to 800 mm*
- Connection Type - Cable, 3-Wire
- Type - GLL170-N332S02
1 - 12 of 18 Part Numbers
Specifications
Brand
Certifications & Approvals
- CE
- cRUus
Sensing Range
- Maximum 0 to 400 mm, Proximity System
- Maximum 0 to 1,320 mm, Through-beam System
Light Source
- LED
Type of Light
- Visible Red Light
Enclosure Rating
- IP66
Housing Material
- Plastic PC/POM
Adjustment
- Potentiometer, 8 Turns
- Teach-in Button
- Plus/Minus Button
- Cable
Response Time
- 50 μs
- Diverse Applications in Challenging Ambient Conditions Which Require an Economical Fiber-optic Sensor
- Environments With Limited Space
- Environments With High Temperatures
- Handling And Assembly Technology
- Electronics And Solar Industry
- Packaging And Logistics Industry
