RJ Adapter & Cable
Brand: Red Lion Controls

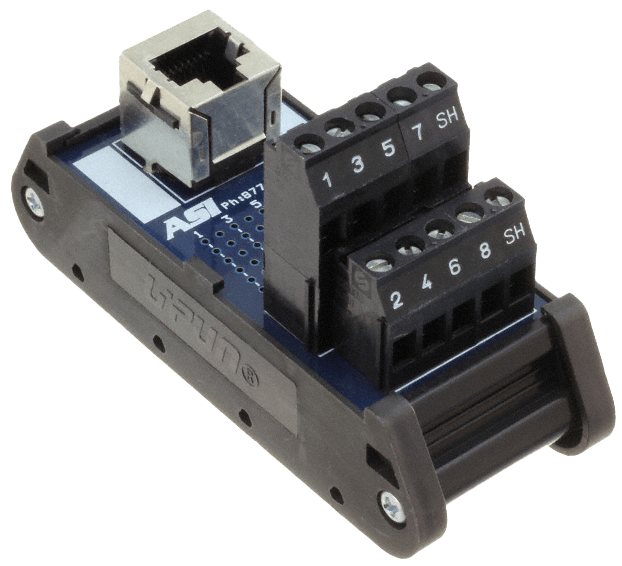

These adapters convert modular RJ-style connectors to terminal block connectors, providing a rugged means by which standard shielded cabling can be used in lieu of flat, unshielded cable.
The DRRJ11T6 can be used with RJ-11 or RJ-12 cables, while the DRRJ45T8 can be used with RJ-45 connectors.
The adapters are designed to mount on any standard DIN rail.
Each screw-terminal accepts wire in size from 26 to 14 AWG (0.14 to 2.5 mm solid; 0.14 to 1.5 mm stranded).
Terminal numbers for the screw-terminals correspond directly to the terminal pin out of the RJ connector.
There is an extra terminal on each block labeled “S” for the connection of shields.
1 - 9 of 9 Part Numbers
CBJ11BD5
- Model - CBJ - RJ-11 to RJ-11 6" Jumper Cable
CBLRLC01
- Model - CBL - RJ-12 to RJ-12 1' Cable
CBLRLC02
- Model - CBL - RJ-12 to RJ-12 10' Cable
CBLRLC03
- Model - CBL - RJ-45 to RJ-45 1' Cable
CBLRLC04
- Model - CBL - RJ-45 to RJ-45 10' Cable
CBLRLC07
- Model - CBL - RJ-45 to RJ-45 6" Jumper Cable
DRRJ11T6
- Model - DRRJ - RJ-11/12 Connector to Terminal Adapter
DRRJ45P6
- Model - DRRJ - RJ-45 Parallel Connector
DRRJ45T8
- Model - DRRJ - RJ-45 Connector to Terminal Adapter
1 - 9 of 9 Part Numbers
Specifications
Brand
Communication
- RS-422
- RS-485
Electrical Connectors
- 26 to 14 AWG
- RJ-11 Connector
- RJ12
- RJ45 Connector
