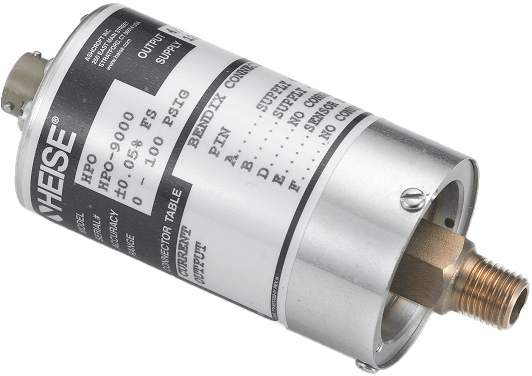

HPO Analog Output Pressure Transducer
Brand: HeiseThe Heise® HPO pressure transducer is a high precision, high level output pressure transducer which offers a broad selection of pressure ranges and media compatibility.
Features- Accuracy ±0.05% of span or better
- Absolute, Gauge, Vacuum and Compound pressure types
- 0/5, 0/10, ±5 Vdc or 4-20mA output
- NEMA 4X housing
- External zero and span adjustment
- Broad pressure media compatibility
- 316 Stainless Steel and Inconel wetted materials
Specifications
Brand
Accuracy
- ± 0.05 % of Span including nonlinearity
Process Connection
- 1⁄4" Male NPT through 5000 psi
- 9⁄16-18 UNF-2B high pressure over 5,000
Resolution
- 0.01 % of Span Output
Pressure Ranges
- Gauge, Absolute, vacuum and compound, Vacuum to 10,000 psi
Wetted Material
- 300 Series Stainless Steel
- Inconel 718
Non-Wetted Materials
- 304 Stainless Steel
Outputs
- -5/+5 Vdc (3-Wire or optional 4-Wire)
- 4/20 mA (2-Wire)
- 0-10 Vdc
- 0-5 Vdc
- Test Benches
- Semiconductor
- Metrology Lab
