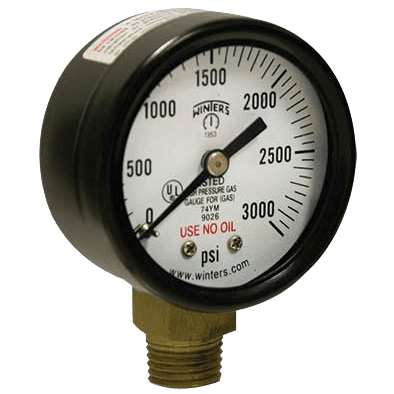

PCG Compressed Gas Pressure Gauge
Brand: Winters Instruments
Features
- Economical 2" (50 mm) gauge with built-in safety features
- Safety blowout back steel case
- ASME B40.100 compliant
- UL listed
- CRN registered
1 - 12 of 14 Part Numbers
PCG90
- Dial Size / Connection - 1.5" (40 mm) / 1/8" NPT Back
PCG9014
- Dial Size / Connection - 1.5" (40 mm) / 1/8" NPT Back
- Pressure Range - psi: 0 to 30
PCG9015
- Dial Size / Connection - 1.5" (40 mm) / 1/8" NPT Back
- Pressure Range - psi: 0 to 60
PCG9016
- Dial Size / Connection - 1.5" (40 mm) / 1/8" NPT Back
- Pressure Range - psi: 0 to 160
PCG9017
- Dial Size / Connection - 2" (50 mm) / 1/8" NPT Back
- Pressure Range - psi: 0 to 100
PCG9018
- Dial Size / Connection - 2" (50 mm) / 1/8" NPT Back
- Pressure Range - psi: 0 to 160
PCG9019
- Dial Size / Connection - 2" (50 mm) / 1/8" NPT Back
- Pressure Range - psi: 0 to 300
PCG9020
- Dial Size / Connection - 2" (50 mm) / 1/4" NPT Bottom
- Pressure Range - psi: 0 to 30
PCG9021
- Dial Size / Connection - 2" (50 mm) / 1/4" NPT Bottom
- Pressure Range - psi: 0 to 60
PCG9022
- Dial Size / Connection - 2" (50 mm) / 1/4" NPT Bottom
- Pressure Range - psi: 0 to 100
PCG9023
- Dial Size / Connection - 2" (50 mm) / 1/4" NPT Bottom
- Pressure Range - psi: 0 to 160
PCG9024
- Dial Size / Connection - 2" (50 mm) / 1/4" NPT Bottom
- Pressure Range - psi: 0 to 300
1 - 12 of 14 Part Numbers
Specifications
Brand
Accuracy
- ± 3-2-3 % ANSI / ASME Grade B
Ambient Temperature Range
- -40° to 65° C (-40° to 150° F)
Approvals & Certifications
- CRN - Canadian Registration Number
- UL Listed
Enclosure Finish
- Blowout Black, Painted Black
Enclosure, Body Material
- Steel
Environmental Protection
- IP52
Lens
- Acrylic Lens
Materials of Construction
- Pointer: Aluminum, Painted Black
- Socket, Bourdon Tube: Brass
Movement
- Brass
NPT Connection
- 1/4" NPT Male
- 1/8" NPT Male
Operating Pressure
- Maximum
Overpressure & Static Pressure Limits
- Overpressure: 25 % of Full Scale Value
Pressure Range
- bar: 0 to 206.8
- kPa: 0 to 20,684
- psi: 0 to 3,000
Process Temperature
- -40° to 65° C (-40° to 150° F)
Ring Material
- Steel, Painted Black
Size
- Dial: 1-1/2" (40 mm)
- Dial: 2" (50 mm)
- Beverage Dispensing, Regulators and Tanks
- Low Pressures are Used on the Down Stream Side of a Regulator.
- High pressures are Used for Measuring Cylinder Gas or Tank Pressures
