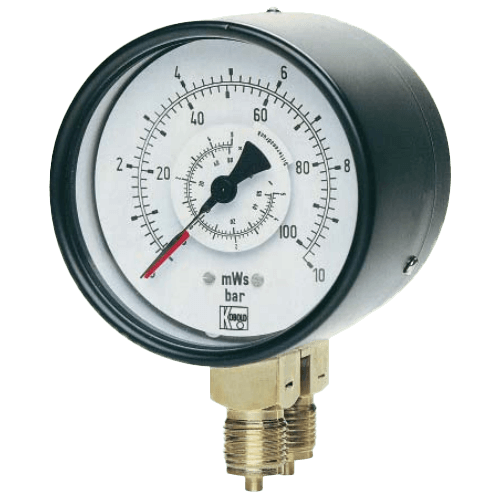

MAN-DF Differential Pressure Gauge
Brand: KOBOLD Instruments, Inc
These KOBOLD pressure gauges are suitable for measuring of liquid and gaseous medias, although this should not be viscous or susceptible to crystallization. These are used wherever the primary pressure, the after-pressure and the resulting pressure differential are to be displayed at the same time.
A cheaper available alternative to the differential pressure gauge that uses a diaphragm is the model with direct display of the differential pressure.
Specifications
Brand
Accuracy
- Class 1.6
Ambient Temperature Range
- -20° to 100° C (-4° to 212° F)
- -20° to 60° C (-4° to 140° F) (MAN-D)
Applications
- Brake Test Benches
- Filter Monitoring
- Industrial Heaters
- Water-Recycling Plant
BSP Connection
- 2 x G 1/2" Male
Connection Material
- 316Ti Stainless Steel
- Brass
Differential Pressure
- psi: 0 to 4,350 (kPa: 0 to 30,000, bar: 0 to 300)
Electrical Contacts
- Maximum
Enclosure, Body Material
- 304L Stainless Steel
- Aluminum, Back Flange
- Steel Black
Environmental Protection
- IP33
- IP54
- IP67
Fill Material
- Glycerin
Materials of Construction
- 304L Stainless Steel - Movement & Measuring Element
- Aluminum Black Anodized - Pointer
- Brass - Movement
- CuZn - Measuring Element
Pressure Range
- bar: 0 to 400
- kPa: 0 to 40,000
- psi: 0 to 5,800
Process Temperature
- Maximum
Ring Material
- 304L Stainless Steel
- Brass (MAN-DF)
- Steel, Black
Window Material
- Instrument Glass
- Safety Glass
