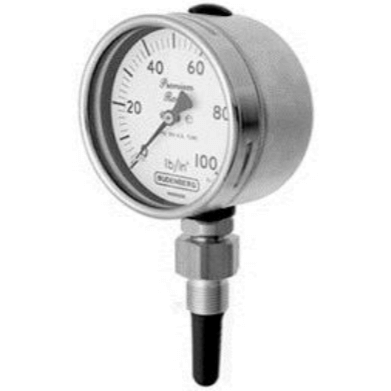

202 Bourdon Tube Pressure Gauge
Brand: BudenbergAn impressive technical specification and wide range of standard features make the PREMIUM the obvious choice for a wide range of process and engineering applications.
The Model 202 Rubber Capsule encompases all the above and by fitting the Premium Gauge with a suitable Viton Sac, the pressure gauge can be used to measure pressures of media that would normall block the inlet of a normal pressure gauge.
Typical applications are effluent disposal, solidifying media such as fatty foodstuffs, and grout. Paper stock is renowned for blocking instrumentation, and this is a simple solution.
Accurate pressure readings of such applications with sudden pressure surges can be accomodated with a viscous damped movement and a snubber.
Specifications
Brand
Approvals & Certifications
- PED
BSP Connection
- 1/2" BSP Male
- 3/8" BSP Male
Dial Diameter
- 4" (100 mm)
- 6" (150 mm)
Environmental Protection
- IP67
NPT Connection
- 1/2" NPT Male
Pressure Range
- bar: 0 to 1
- kPa: 0 to 100
- psi: 0 to 14.5
Pressure Type
- Gauge
Case/Bezel Material
- 316L Stainless Steel
Materials of Construction
- Pressure Element: 316 Stainless Steel
- Dial: White Anodised Aluminium
- Pointer: Stainless Steel
- Movement: 316L Stainlss Steel
- Window: 3 mm Laminated Safety Glass (Standard)
- Window: Acrylic Plastic Optional
Operating Temperature
- -20° to +50° C
Mounting
- Direct
Accuracy Class
- Option: 0.5 % of FSD as defined in EN 837-1
- CL:1 1.0 % of FSD as defined in EN 837-1
